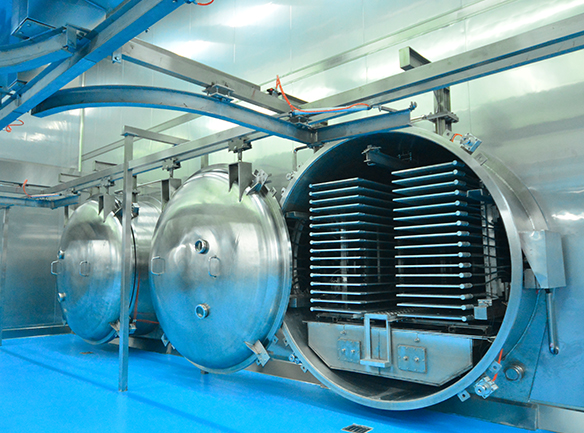

An industrial freeze drying line for complete food processing is a fully integrated production system
designed to convert raw or semi-processed food materials into stable, shelf‑ready Freeze dried products at scale.
This type of production line combines raw material handling, pre‑treatment, freezing, vacuum freeze drying
(lyophilization), post‑drying conditioning, packaging, and in many cases automated cleaning and control systems.
An industrial freeze drying line is a continuous or batch production system that uses low
temperature and vacuum to remove water from food products by sublimation. Instead of passing
through a liquid phase, ice in the product turns directly into vapor under controlled conditions. This method
preserves taste, color, nutrients, and structure significantly better than conventional thermal drying methods.
When configured as a complete food processing line, the system includes all upstream and
downstream steps required to transform raw food into finished freeze dried products. These steps may include:
While the basic physical principles are the same, an industrial freeze drying line for food processing
differs from small laboratory lyophilizers in several ways:
| Aspect | Laboratory Lyophilizer | Industrial Freeze Drying Line for Food |
|---|---|---|
| Scale | Grams to a few kilograms per batch | Hundreds of kilograms to multiple tons per batch or per day |
| Integration | Standalone unit, manual loading and unloading | Integrated with pre‑processing, conveyors, packaging, and automation |
| Product Types | Research samples, pharmaceuticals | Fruits, vegetables, meats, seafood, ready‑meals, pet food, ingredients |
| Production Mode | Intermittent, experimental | Continuous or semi‑continuous industrial production |
| Validation | Focus on research reproducibility | Focus on food safety, consistency, and regulatory compliance |
| Automation Level | Primarily manual control | High level of automation, PLC/SCADA systems, recipe management |
A fully engineered industrial freeze drying line for complete food processing aims to:
An industrial freeze drying line for complete food processing is typically composed of several
functional modules. The exact configuration depends on the type of food, production capacity, and required
automation level, but the following components are commonly found.
The freezing section prepares the product for freeze drying by rapidly lowering its temperature
below the eutectic or glass transition point of the aqueous phase. Common options:
| Freezing Method | Typical Application | Advantages for Freeze Drying |
|---|---|---|
| IQF Tunnel | Fruits, vegetables, small meat pieces | Uniform particle freezing, minimal clumping, ideal for loose products |
| Plate Freezer | Trays, blocks, thin layers | Efficient heat transfer, flat product surfaces for consistent drying |
| Spiral Freezer | Packaged ready‑meals, formed products | High throughput, compact footprint |
The freeze dryer is the heart of the industrial freeze drying line. It normally includes:
The core of an industrial freeze drying line is the transition of water from ice to vapor
under vacuum, known as sublimation. The overall complete food processing flow incorporates
a series of steps that ensure safety and quality.
Pre‑freezing can occur in a separate freezer or within the freeze dryer chamber.
The goal is uniform solidification of water within the food matrix. Key factors:
In primary drying, chamber pressure is reduced below the vapor pressure of ice at the product temperature.
Heat is supplied gently to provide the latent heat of sublimation while the ice turns directly into vapor.
| Primary Drying Parameter | Typical Range for Food Products | Influence on Process |
|---|---|---|
| Chamber Pressure | 0.05 to 1.0 mbar (5 to 100 Pa) | Lower pressure increases sublimation rate but requires stronger vacuum systems |
| Product Temperature | -40 °C to -5 °C | Must remain below product’s critical temperature to avoid collapse or melting |
| Shelf Temperature | -30 °C to +10 °C | Controls heat input and indirectly controls sublimation front |
| Primary Drying Time | 8 to 40 hours (depending on product and thickness) | Longer times for high‑moisture, dense, or thick foods |
After visible ice is removed, residual bound water remains in the food structure.
Secondary drying increases shelf temperature under low pressure to drive off this moisture
to very low levels (often < 2–4%).
After achieving the target final moisture and water activity, the product is cooled
to near ambient conditions under controlled atmosphere (vacuum or inert gas) to avoid moisture uptake.
The product is then unloaded, usually through:
An industrial freeze drying line for complete food processing offers several advantages over
traditional drying technologies such as hot air drying or spray drying.
Technical specifications of an industrial freeze drying line vary widely, but the tables below
provide indicative ranges for food processing applications.
| Parameter | Typical Range for Industrial Food Freeze Dryers | Notes |
|---|---|---|
| Installed Capacity (per batch) | 100 kg to 5,000 kg of frozen product | Large‑scale systems may use multiple chambers in parallel |
| Usable Shelf Area | 10 m² to 250 m² | Higher area for greater throughput |
| Chamber Material | Stainless steel (e.g., AISI 304/316) | Food‑grade and corrosion‑resistant |
| Operating Pressure Range | 0.01 to 2.0 mbar | Controlled via vacuum pumps and valves |
| Condenser Temperature | -40 °C to -80 °C | Must be lower than product temperature for efficient vapor capture |
| Shelf Temperature Range | -50 °C to +80 °C | Allows pre‑freezing, primary drying, and secondary drying |
| Heat Transfer Medium | Silicone oil or glycol‑water mixture | Circulated through the shelves |
| Power Consumption | Varies from 100 kW to over 1,000 kW | Depends on capacity and design efficiency |
| Line Parameter | Typical Specification | Comments |
|---|---|---|
| Total Throughput | 200 kg/day to 20,000+ kg/day finished product | Often achieved with multiple dryers in parallel |
| Line Layout | Linear or U‑shaped with segregated clean areas | Designed for optimized material flow and hygiene |
| Automation Level | Manual, semi‑automatic, or fully automatic | Depends on labor costs and production scale |
| Cleaning System | CIP circuits with dedicated skids | For internal chamber and piping cleaning |
| Utilities Required | Electricity, cooling water, compressed air, steam (optional) | Exact values defined in project engineering |
| Control System | PLC with HMI and optional SCADA | Supports recipe control and data logging |
Different configurations of industrial freeze drying lines exist to meet specific food application needs.
Selecting and designing an industrial freeze drying line for complete food processing requires careful
analysis of technical, economic, and regulatory factors.
Industrial freeze drying lines are used across many segments of the food industry.
The complete food processing capability makes them ideal for both ingredients and consumer products.
Efficient operation of an industrial freeze drying line depends on precise control of
temperature, pressure, and time throughout the complete food processing cycle.
| Parameter | Role in Freeze Drying | Typical Control Strategy |
|---|---|---|
| Product Temperature | Must remain below collapse temperature during primary drying | Monitored via sensors or thermocouples placed in product |
| Chamber Pressure | Determines vapor pressure gradient for sublimation | Controlled by vacuum pumps and throttle valves |
| Shelf Temperature | Provides controlled heat input to the product | Programmed ramps and holds in the recipe |
| Condenser Temperature | Captures water vapor from the chamber | Kept sufficiently lower than product temperature |
| Drying Time | Ensures complete removal of moisture | Optimized based on product type and thickness |
Recipes define set points and steps for:
Freeze drying is energy intensive, but a well‑designed industrial freeze drying line can optimize
energy usage and operating costs.
| Cost Element | Description | Impact on Project |
|---|---|---|
| Capital Expenditure (CAPEX) | Equipment purchase, installation, building works | Determines project entry cost, depreciated over years |
| Operating Expenditure (OPEX) | Energy, labor, maintenance, materials | Affects long‑term profitability |
| Product Selling Price | Market value of freeze dried foods | Higher value helps justify freeze drying investment |
| Utilization Rate | Percentage of time line is in productive use | Higher utilization reduces cost per kg |
Food manufacturers must ensure that their industrial freeze drying line meets hygiene and
safety standards across the complete food processing operation.
Implementing a complete industrial freeze drying line for food processing requires careful planning from
project design through start‑up and operation.
When choosing a drying method for food processing, manufacturers often compare an
industrial freeze drying line with other technologies.
| Drying Technology | Main Features | Advantages | Limitations Compared to Freeze Drying |
|---|---|---|---|
| Hot Air Drying | Forced convection at elevated temperatures | Lower CAPEX and OPEX, simple operation | More shrinkage, nutrient loss, color change, weaker rehydration |
| Spray Drying | Atomization of liquids into hot air | Very high throughput for liquids | Not suitable for solid pieces, higher thermal damage |
| Drum Drying | Thin film drying on heated drums | Efficient for pastes and purees | Product may show cooked flavor and lower functional quality |
| Microwave or Vacuum Belt Drying | Dielectric heating with vacuum or reduced pressure | Faster than conventional drying | Quality usually inferior to freeze drying, potential hot spots |
| Freeze Drying | Low temperature sublimation under vacuum | Highest quality, excellent rehydration, long shelf life | Higher capital and operating costs, longer cycle times |
It is an integrated production system that takes raw food materials through washing, cutting,
freezing, freeze drying, post‑processing, and packaging to deliver finished freeze dried foods at industrial scale.
The line first freezes the food, then places it in a vacuum chamber where heat is applied gently.
Water sublimes from ice to vapor and is captured by a cold condenser, leaving a dry, porous product.
Downstream modules cool, handle, and package the dry food.
Fruits, vegetables, meat, seafood, ready‑meals, dairy, coffee, tea, pet food, and many functional
ingredients can be freeze dried, provided the product is prepared in a suitable format.
Freeze drying delivers the highest product quality, preserving structure, color, flavor,
and nutrients, and enabling very long shelf life. It is favored for premium and sensitive products.
Typical components include raw material handling equipment, freezers, freeze dryer chambers,
vacuum and refrigeration systems, automation and control units, CIP systems, and downstream packaging equipment.
Freeze drying typically reduces moisture to below 2–4% and achieves low water activity,
which significantly inhibits microbial growth and chemical reactions.
Yes, freeze drying uses more energy than many conventional drying methods.
However, process optimization, efficient equipment, heat recovery, and proper loading can reduce
energy consumption per kilogram of finished product.
A full cycle including pre‑freezing, primary drying, and secondary drying can range from 10 to more than 40 hours,
depending on the food type, thickness, and moisture content.
A suitable building with appropriate floor loading, refrigeration and power supply,
cooling water, compressed air, and in some cases steam. Integration with existing production areas
and logistics also needs to be planned.
Because processing temperatures are low and oxygen exposure is limited,
freeze drying generally preserves more vitamins, antioxidants, and other nutrients
than high‑temperature drying methods.
Yes, a well‑designed industrial freeze drying line supports multiple products
by using adjustable recipes and versatile pre‑processing and packaging solutions.
Cleaning and allergen control procedures are crucial when switching between products.
When properly packaged in moisture and oxygen barrier materials,
freeze dried foods can often achieve shelf lives from 1 to 25 years,
depending on formulation and storage conditions.
An industrial freeze drying line for complete food processing offers food manufacturers the ability
to produce high‑quality, shelf‑stable, and premium freeze dried products. By integrating upstream preparation,
precise freeze drying, and downstream packaging in a single coordinated system, food producers can
maximize value from raw materials and deliver consistent, safe, and attractive products to the market.
```
