1. What Is an Energy Saving Vacuum Freeze Dryer for Food Factories?

An energy saving vacuum freeze dryer for food factories is an industrial-scale

lyophilization system designed to remove moisture from food products through

freezing and sublimation under vacuum, while minimizing electrical and thermal

energy consumption. In a food processing environment, this equipment is used for high‑value

products that require excellent retention of nutrients, flavor, color and structure.

Unlike conventional hot‑air dryers or spray dryers, a vacuum freeze dryer operates at

low temperatures (typically between −50 °C and +60 °C on product surfaces)

and very low pressure. Ice in the frozen food matrix is converted directly into

vapor and removed, resulting in a porous, easily rehydratable product. The "energy saving"

aspect focuses on advanced design and control strategies that reduce:

• Electricity consumption of refrigeration systems and condensers.
• Power demand of vacuum pumps and auxiliary equipment.
• Steam or hot‑water consumption for shelf heating.
• Overall cycle time without compromising product quality.

For food factories, an energy saving vacuum freeze dryer is especially valuable where

energy cost, environmental regulations and sustainability targets are key strategic drivers.

2. Working Principle of Vacuum Freeze Drying

2.1 Basic Steps of Freeze Drying

The energy saving vacuum freeze dryer for food factories follows the classical

three‑stage freeze drying process:

1. Freezing: The food product is cooled below its eutectic or glass transition temperature so that water solidifies into ice crystals.
2. Primary drying (sublimation): Under deep vacuum, heat is applied to the frozen product. Ice sublimates directly into water vapor and is captured on a cold condenser.
3. Secondary drying (desorption): Residual bound water is removed at slightly higher temperatures to reach the desired final moisture content.

2.2 Role of Vacuum in Energy Saving Freeze Dryers

The vacuum in an industrial freeze dryer reduces the boiling point of water, enabling

sublimation at low temperatures. In an energy saving vacuum freeze dryer, the vacuum system

is optimized to:

• Maintain stable, low pressure during primary drying to prevent product collapse.
• Minimize leaks and unnecessary gas loads that increase pump energy use.
• Use variable‑speed pumps or staged pumping to reduce energy during less demanding phases.

2.3 Heat and Mass Transfer Considerations

Efficient freeze drying depends on balanced heat transfer to the product and

mass transfer of vapor away from the product surface. Energy saving

vacuum freeze dryers for food factories incorporate:

• Optimized shelf designs to increase uniform heat distribution.
• Tray or bulk loading patterns that reduce resistance to vapor flow.
• Control algorithms that maintain product temperature just below critical collapse temperature.

By optimizing heat and mass transfer, the system reduces total drying time and eliminates

excessive heating or over‑cooling that wastes energy.

3. Key Components of an Industrial Energy Saving Freeze Dryer

An energy saving vacuum freeze dryer for food factories consists of multiple subsystems, each

of which can significantly impact energy performance.

3.1 Drying Chamber

The drying chamber is a vacuum‑tight vessel that holds shelves and product trays. Important

energy‑related design aspects include:

• High‑performance thermal insulation to reduce heat loss.
• Low‑leak doors and gaskets to minimize vacuum pump load.
• Optimized chamber geometry for uniform vapor flow.

3.2 Shelves and Trays

Shelves provide controlled heating and cooling to the food product. For energy saving:

• Internal channels for efficient heat transfer fluid circulation.
• Uniform temperature distribution across all shelf levels.
• Surface finishes that balance contact conductance and cleanability.

3.3 Refrigeration System

The refrigeration unit cools the condensing surface and may also support shelf freezing.

Energy saving features include:

• High‑efficiency compressors (e.g., screw or scroll).
• Multi‑stage or cascade refrigeration cycles.
• Variable speed drives (VSD) for compressor motors.
• Heat recovery from the condenser to preheat process water.

3.4 Vacuum System

The vacuum system typically includes primary (mechanical) pumps and optional booster pumps.

Energy optimization options:

• Dry screw pumps for reduced maintenance and improved efficiency.
• Frequency‑controlled motors to match capacity to load.
• Efficient isolation valves and automatic leak detection.

3.5 Condenser (Cold Trap)

The condenser captures water vapor from the product. It strongly influences both

energy consumption and cycle time. Key design points:

• Large surface area with optimized vapor flow distribution.
• Low operating temperature (often between −40 °C and −80 C).
• Defrost cycle management to minimize downtime and energy spikes.

3.6 Heating and Cooling Circuit

A closed loop of thermal fluid (glycol, silicone oil or water‑based media) circulates

through shelves. Energy saving vacuum freeze dryers use:

• High‑efficiency pumps with variable speed drives.
• Plate or shell‑and‑tube heat exchangers with low pressure drop.
• Advanced temperature control valves to avoid overshoot.

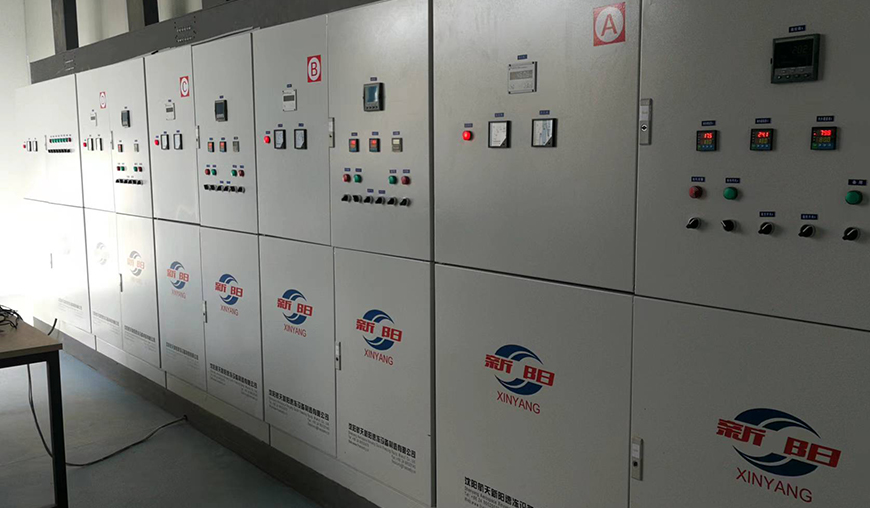

3.7 Control System and Automation

The control system is crucial to energy saving performance. Typical features:

• PLC or industrial PC with full recipe management.
• Real‑time monitoring of pressure, shelf temperature, product temperature and energy use.
• Dynamic adjustment of setpoints based on product load and phase.
• Integration with factory energy management systems.

4. Advantages for Food Factories

Investing in an energy saving vacuum freeze dryer provides multiple benefits for food

factories that process fruits, vegetables, meats, seafood, dairy, coffee, and functional

foods or nutraceuticals.

4.1 Superior Product Quality

• Retention of natural color, flavor and aroma due to low‑temperature processing.
• High preservation of heat‑sensitive vitamins, antioxidants and functional ingredients.
• Porous structure for rapid and complete rehydration.
• Minimal shrinkage and deformation, preserving original shape.

4.2 Extended Shelf Life

• Very low final moisture and water activity inhibit microbial growth.
• Reduced enzymatic and chemical degradation during storage.
• Stable products that can be stored and distributed at ambient temperature.

4.3 Energy and Cost Savings

An energy saving vacuum freeze dryer reduces energy consumption per kilogram of dried

product through:

• Shorter cycle times via optimized process control.
• Improved thermodynamics in refrigeration and heating circuits.
• Heat recovery and intelligent defrost management.
• Lower electricity peak demand through load balancing.

4.4 Environmental and Sustainability Benefits

• Lower carbon footprint compared with conventional, less efficient freeze drying setups.
• Reduced demand on the factory's utility infrastructure.
• Support for corporate sustainability reporting and certifications.

4.5 Operational Flexibility

• Ability to process a wide range of product types and batch sizes.
• Recipe‑based operation enables quick product changeovers.
• Scalable designs from pilot‑scale to large‑scale industrial units.

5. Energy Consumption and Cost Structure

Understanding where energy is used in a vacuum freeze dryer helps food factories identify

the most effective energy saving strategies.

5.1 Major Energy Consumers

• Refrigeration system: Condenser cooling, shelf freezing, and sometimes air conditioning of associated rooms.
• Heating system: Steam, hot water or electrical heaters supplying energy to shelves.
• Vacuum pumps: Creating and maintaining low chamber pressure.
• Auxiliary equipment: Control electronics, conveyors, loading systems, lighting.

5.2 Typical Energy Use Distribution (Indicative)

5.3 Energy Cost per Kilogram of Dried Product

The specific energy consumption of a vacuum freeze dryer for food factories is typically

expressed as kWh per kilogram of water removed or kWh per kilogram of dried product. Energy saving designs may reduce specific consumption by 20–40 % compared to

older, non‑optimized systems, depending on:

• Product characteristics (initial moisture, solids content, thermal sensitivity).
• Loading density and tray configuration.
• Set‑up of freezing, primary drying and secondary drying phases.
• Ambient conditions and utility infrastructure.

6. Energy Saving Technologies and Design Features

An energy saving vacuum freeze dryer for food factories uses a combination of

mechanical design, thermal engineering and automation to reduce power consumption.

6.1 Advanced Refrigeration Technologies

• Use of high‑efficiency screw or scroll compressors with optimized refrigerant selection.
• Multi‑stage or cascade refrigeration systems to achieve deep condensing temperatures more efficiently.
• Floating condensing pressure control to adapt to ambient temperature changes.

6.2 Heat Recovery and Integration

One of the strongest trends in energy saving vacuum freeze dryers is

heat recovery:

• Recovering waste heat from compressor discharge to preheat process water or air.
• Reusing heat from condenser defrost to support secondary drying or pre‑heating steps.
• Integration of the freeze dryer with central plant heating and cooling loops.

6.3 Variable Speed Drives and Smart Motors

• Variable frequency drives (VFD) on refrigeration compressors to match capacity with load.
• VFD on circulation pumps for heating/cooling media and on vacuum pumps.
• Soft‑start technology to reduce electrical peaks.

6.4 Optimized Control Algorithms

Control strategies in energy saving vacuum freeze dryers often include:

• Automatic adjustment of shelf temperature based on product temperature feedback.
• Adaptive control of chamber pressure to follow the ideal sublimation curve.
• Dynamic endpoint detection for primary and secondary drying using pressure rise tests or moisture sensors.
• Energy‑aware scheduling to run energy‑intensive phases during off‑peak tariff periods when possible.

6.5 Thermal Insulation and Chamber Design

• Highly efficient, low‑conductivity insulation around chamber and piping.
• Minimizing thermal bridges and unnecessary heat gain or loss.
• Door and window design preventing cold leaks and condensation.

6.6 Load Optimization and Process Engineering

The process itself can be engineered to minimize energy use:

• Standardizing product thickness and fill levels for uniform drying.
• Increasing shelf utilization rate while maintaining acceptable mass transfer resistance.
• Using pre‑freezing strategies that create optimal ice crystal structures for faster sublimation.

7. Typical Technical Specifications (Reference Tables)

The exact specifications of an energy saving vacuum freeze dryer for food factories vary

widely. The following tables present indicative values to help understand typical ranges.

7.1 Capacity and Chamber Size

7.2 Operating Conditions

7.3 Energy Performance Indicators

8. Application Scenarios in Food Factories

An energy saving vacuum freeze dryer can be integrated in many different production lines

in the food industry. It is especially well suited for:

• Fruits and berries (strawberries, raspberries, blueberries, mango, pineapple).
• Vegetables (peas, sweet corn, carrots, onions, mushrooms).
• Meat and seafood (beef, poultry, fish pieces, shrimp, pet food treats).
• Dairy products (yogurt bites, cheese powders, whey and milk powders).
• Coffee, tea and herbal extracts.
• Ready‑to‑eat meals, soups, sauces and instant meal components.
• Functional foods, nutraceuticals and ingredients with sensitive bioactive components.

8.1 Integration in a Food Factory Layout

In a food factory, the energy saving vacuum freeze dryer is typically placed downstream of:

1. Raw material washing, sorting and cutting.
2. Blanching, cooking or pre‑treatment (if required).
3. Pre‑freezing (tunnel freezer, plate freezer or spiral freezer).

After freeze drying, typical downstream operations include:

• Grinding, sizing or granulation.
• Blending with other ingredients.
• Packaging in moisture‑barrier materials (pouches, cans, jars).
• Metal detection and quality inspection.

9. Selection Guide for Food Processing Plants

When selecting an energy saving vacuum freeze dryer for a food factory, decision‑makers

should evaluate technical, economic and operational criteria.

9.1 Key Selection Parameters

• Required capacity: Target batch size, number of batches per day and annual throughput.
• Product portfolio: Types of food, moisture content, sensitivity and target quality attributes.
• Space constraints: Available floor area, ceiling height and access for maintenance.
• Utility availability: Steam, hot water, chilled water, electricity, compressed air.
• Automation level: Need for recipe management, data logging, remote access and integration with MES/SCADA.
• Cleaning requirements: Manual cleaning vs CIP (Cleaning‑In‑Place), hygienic design expectations.

9.2 Evaluating Energy Saving Potential

To evaluate whether a specific vacuum freeze dryer design is truly energy saving, a food

factory can request:

• Specific energy consumption data for similar reference products.
• Details of refrigeration system design and compressor efficiency classes.
• Information on heat recovery options and integration with existing utilities.
• Data on insulation materials and chamber heat loss calculations.
• Examples of process optimization or cycle time reduction in real production.

9.3 Total Cost of Ownership (TCO) Considerations

While initial investment cost is important, the total cost of ownership of an energy

saving vacuum freeze dryer includes:

• Electricity, gas and steam costs over the equipment lifetime.
• Maintenance and spare parts for compressors, pumps, valves and controls.
• Downtime cost from failures, defrosting and cleaning operations.
• Product losses due to quality deviations or batch failures.

An energy saving design often has a slightly higher initial cost but pays back through

lower operating costs and increased reliability.

10. Operation, Control and Automation Strategies

Efficient operation of an energy saving vacuum freeze dryer in a food factory depends on

appropriate control strategies and trained operators.

10.1 Recipe Management

Recipes define process parameters for each product:

• Freezing ramp rates and final freezing temperature.
• Primary drying shelf temperature curves.
• Chamber pressure setpoints and transitions.
• Secondary drying temperature and time limits.

An energy saving approach includes data‑driven fine‑tuning to shorten steps and avoid

over‑drying.

10.2 Real‑Time Monitoring

Modern systems include sensors for:

• Shelf and product temperature (thermocouples, RTDs).
• Chamber and condenser pressure (Pirani, capacitance manometers).
• Energy meters for key subsystems (electrical and thermal energy).

Real‑time monitoring enables operators to detect anomalies and implement energy saving

adjustments quickly.

10.3 Integration with Plant Energy Management

Energy saving vacuum freeze dryers can be integrated with factory‑wide systems to:

• Coordinate high‑energy phases with low tariff periods.
• Balance load across multiple refrigeration and heating units.
• Generate energy consumption reports for each product or batch.

11. Maintenance, Cleaning and Validation

11.1 Preventive Maintenance

To preserve energy efficiency, preventive maintenance of an industrial vacuum freeze dryer

is essential:

• Regular inspection and cleaning of condenser and refrigeration components.
• Checking insulation integrity and door gaskets to avoid leaks.
• Monitoring vacuum pump performance and lubricant conditions (if applicable).
• Calibration of temperature and pressure sensors and verification of control loops.

11.2 Cleaning and Hygiene

In food factories, hygiene is a priority. Many energy saving vacuum freeze dryers are

designed with:

• Stainless‑steel product contact surfaces.
• Rounded corners and smooth welds to avoid microbial niches.
• Options for manual or automatic Cleaning‑In‑Place (CIP) systems.
• Drainage systems that avoid standing water.

11.3 Validation and Quality Assurance

Consistent performance is confirmed through:

• Process validation runs and documentation of critical parameters.
• Periodic requalification of equipment performance and energy consumption.
• Implementation of HACCP and other food safety programs that include the dryer.

12. Comparison with Other Drying Technologies

12.1 Freeze Drying vs Hot Air Drying

12.2 Freeze Drying vs Spray Drying

13. Common Problems and Troubleshooting Ideas

During operation of an energy saving vacuum freeze dryer in food factories, several

common issues may arise.

13.1 Incomplete Drying or High Final Moisture

Possible causes and preventive measures:

• Insufficient primary or secondary drying time → Review recipe, prolong phase durations.
• Too low shelf temperature during secondary drying → Increase temperature within product safety limits.
• Non‑uniform loading or excessive product thickness → Standardize loading patterns.

13.2 Product Collapse or Melt‑Back

• Product temperature exceeds collapse temperature during primary drying.
• Excessive shelf temperature or too rapid pressure reduction.
• Correct by lowering shelf temperature and adjusting ramp rates.

13.3 High Energy Consumption

• Refrigeration system not optimized or running at constant full capacity.
• Poor insulation causing heat gains or losses.
• Vacuum leaks leading to higher pump load.
• Review maintenance records, inspect gaskets, and adjust control settings.

13.4 Long Defrost Times

• Heavy ice build‑up on condenser because of long cycles.
• Inefficient defrost strategy (insufficient water flow or temperature).
• Optimize cycle scheduling and defrost method to reduce downtime and energy use.

14. Future Trends in Energy Saving Vacuum Freeze Dryers

The development of energy saving vacuum freeze dryer technology for food factories is

evolving rapidly, driven by cost pressures, sustainability goals and digitalization.

14.1 Integration with Renewable Energy

Food factories increasingly connect high‑energy equipment to:

• On‑site solar photovoltaic power generation.
• Biogas‑driven combined heat and power (CHP) units.
• District heating or cooling networks for improved energy use.

14.2 Advanced Modeling and AI‑Based Optimization

Emerging systems use:

• Mathematical models of heat and mass transfer to simulate drying curves.
• Machine learning algorithms to suggest parameter changes that save energy.
• Digital twins that compare predicted and actual performance.

14.3 Modular and Scalable Designs

To accommodate varying production volumes, modular vacuum freeze dryers allow:

• Connecting multiple chambers to a common refrigeration and vacuum system.
• Phased investments as demand grows.
• Flexible maintenance scheduling without shutting down the entire capacity.

14.4 Enhanced Hygienic and CIP Concepts

Next generation energy saving vacuum freeze dryers for food factories will provide:

• Fully enclosed and automated cleaning processes.
• Improved drainage and surface finishes for faster and more effective sanitation.
• Reduced water and chemical consumption in cleaning routines.

15. Frequently Asked Questions (FAQ)

15.1 What makes a vacuum freeze dryer "energy saving" in a food factory context?

A vacuum freeze dryer is considered energy saving when it combines high‑efficiency

refrigeration, optimized vacuum systems, advanced process control and heat recovery.

The goal is to lower the kWh per kilogram of dried product while maintaining or improving

food quality and throughput.

15.2 Can an existing freeze dryer in a food plant be upgraded for better energy performance?

In many cases, yes. Possible upgrades include adding variable speed drives to compressors

and pumps, improving insulation, implementing a more advanced control system, optimizing

process recipes, and integrating heat recovery where feasible.

15.3 How does product type affect energy consumption?

Product type determines initial moisture, solids content, thickness and heat sensitivity.

High‑moisture foods or products with high sugar content may require longer primary drying

and more careful control of product temperature, which can increase energy use. Optimized

recipes and pre‑treatment can partially offset these effects.

15.4 Is freeze drying always the best choice for food factories?

Freeze drying offers superior quality and functional properties but is more capital‑ and

energy‑intensive than some alternatives. It is best suited to high‑value or heat‑sensitive

products where the premium price or functional benefits justify investment in an energy

saving vacuum freeze dryer.

15.5 What information is needed to design a suitable energy saving vacuum freeze dryer for a food factory?

Typical information includes target products, expected throughput, production scheduling,

utility availability, required level of automation, hygienic requirements, and energy

cost structure. This information allows engineers to size shelves, refrigeration capacity,

vacuum pumps and control systems appropriately.
